specificazioni
Engraving Speed:30000mm/min
Formato grafico supportato: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Applicazione: incisione laser
Engraving Area:1300*2500mm
ConditionNew
CNC o no: sì
Cooling ModeWater Cooling
Luogo di origine: Anhui, Cina (continente)
Certificazione: CE, ISO, SGS
Garanzia: 1 anno
Laser source:Raycus Fiber Laser
Control systemCyo Tube
Chiller:TEYU
ReducerShimpo reducer
Fiber laser head:Ray tools
Auxiliary gas:Air, oxygen,nitrogen
Cutting speed:Depending on materials
Aiming pisition:Red light
Bed structure:Welded thick square pipes
Motor and driver:YASKAWA
Descrizione del prodotto
Certification: ISO9001, SGS, CE

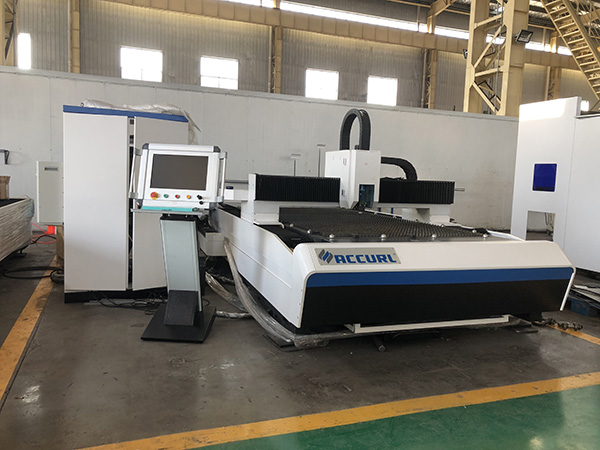

nome del prodotto | genius-KJG-1530D 500w fiber laser cutting machine Manufacturer Direct Selling High Quality Fiber Laser Cutting Machine |
Material of bed structure | Welded thick steel pipes |
Colore | blue & white |
Area di lavoro | 1300*2500(mm) |
Fiber laser power | 500w |
Laser wavelenghth | 1080nm |
Beam quality | <0.373mrad |
Cutting accuracy | ± 0,05 millimetri |
Repositioning accuracy | ± 0,03 millimetri |
Max. Working speed | 30000mm/min |
Velocità di taglio | Depending on materials |
Gas ausiliario | Air, oxygen, nitrogen. |
Modalità di raffreddamento | Industrial recycled cooling water |
Aiming positioning | Red light |
Continuous working hours | 24H |
Sorgente laser | Raycus |
Sistema di controllo | CypTube |
Fiber laser head | Ray tools |
Bed structure | Welded thick square pipes |
Motor and driver | YASKAWA |
Guide rails | PMI guide rails |
Racks | Taiwan YYC racks |
Chiller | TEYU |
Oiling system | Auto lubricating system |
Reducer | Riduttore giapponese Shimpo |
Sorgente laser
The single core junction semiconductor pumped laser is used as the pumping source of the fiber laser. The fiber laser has the characteristics of long life. Minimum service life exceeds 100,000 hours.
It has excellent thermal performance, high electro-optical efficiency, water saving and electricity saving. Especially important, it can be used without maintenance for a long time. It can save a lot of maintenance funds and time, and improve work efficiency.
Fiber laser head---Ray tools
It has Z-axis follow-up function. Stable and fast cutting height automatic adjustment function. Various nozzle matching designs are suitable for lenses with various focal lenses. Optical lenses with different focal lengths can be equipped. The focal length and nozzle height can be adjusted flexibly, including X-Y lens and nozzle coaxial adjustment. The focal length of cutting head can be adjusted to 0.01mm accurately.
FAQ
Q: sei società commerciale o produttore?
A: siamo fabbrica.
Q: quanto è lungo il tempo di consegna?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q: Quali sono i tuoi termini di pagamento?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact me.
