specificazioni
Cutting Speed:35m/min, 0.5-0.8 m/min
Formato grafico supportato: Altro
Applicazione: taglio laser
Condizione: Nuovo
Cutting Thickness:16 mm CS
CNC o no: sì
Modalità di raffreddamento: raffreddamento ad acqua
Software di controllo: Cypcut
Luogo di origine: Anhui, Cina (continente)
Certificazione: CE, ISO, SGS
Cutting area(length x width):3000x1500 mm
CS cutting thickness:16 mm
SS cutting thickness:8 mm
SS Cutting Speed:0.5 - 0.9 m/min
X,Y axis position accuracy:≤±0.05 mm
X,Y axis repeatability:±0.02 mm
X axis stroke:3020 mm
Y axis stroke:1520 mm
Z axis stroke:100 mm
Assistenza post-vendita fornita dagli ingegneri per la manutenzione delle macchine all'estero
Descrizione del prodotto

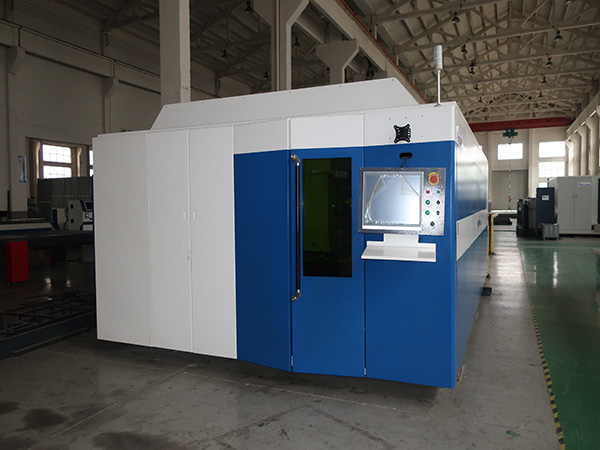

Factory Directly Supply High Quality Sheet Metal Fiber Laser Cutting Machine From China
LFH SERIES
Sgantry Type Double Drive Fiber Laser Cutting Machine (Exchanged Table),The new closed design, double table fast exchange ,while processing edge cutting, fast,small slit, smooth section, easy operation,low energy consumption,suitable for large quantities of continuous processing, highlighting cutting competitive advantages.
Applicable Industries
Machinery and Equipment / Spare Parts Processing / Auto Parts / Aerospace / Oil Pipeline / Elevator Manufacturing / Sheet Metal Processing
Specifications for ECO-FIBER-1530 | |||
Working Size and Range | 1. Cutting area(length x width) 3000x1500 mm | ||
2. X axis stroke 3020 mm | |||
3. Y axis stroke 1520 mm | |||
4. Z axis stroke 100 mm | |||
Machine Accuracy | 5. X,Y axis position ≤±0.05 mm accuracy | ||
6. X,Y axis repeatability ±0.02 mm | |||
7. Cutting-joint 0.1~0.3 mm As per plate thickness | |||
Cutting Capacity | 8. CS cutting thickness 16 mm | ||
9. Cutting Speed 0.5-0.8 m/min | |||
10. SS cutting thickness 8 mm 2000 W | |||
11. Cutting Speed 0.5 - 0.9 m/min | |||
12. Max.carrying weight of table 1200 Kg | |||
Caratteristiche principali
The basic principle of laser cutting are : the laser is focused on the material, the material is locally heated to above the meltlingpoint, then blow away the molten metal with a coaxial nozzle high- pressure gas or the metal vapor pressure, with the beam and the material is relatively linear movement so that holes are continuously formed very narrow width of the slit.
In the large format Laser Cutting Machine, the processing height is slightly different parts, so that the surface of the material deviation from local length , so that the spot size is different in different places, the power density os not the same, different quality laser cutting position is inconsistent not reach the laser Cutting Quality requirement.
Cutting Head using servo system ensure highly consistent cutting head and cutting material, thus ensuring the cut.
